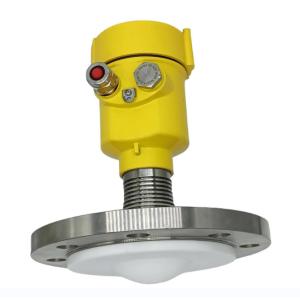

Non Contact Radar Level Transmitter is a reliable and accurate level measurement device. It can realize continuous level measurement of solids and liquids. It can ensure high precision and high stability of measurement under various working conditions. Easy to install, simple to operate and less maintenance, this series is an ideal solution for level control in the production process.

Features:

80GHz FMCW technology
False echo suppression option
Narrow beam, small blind zone and accurate measurement
Unaffected by temperature fluctuations
Resistant to dirt and buildup
Measurement under vacuum and high pressure
Small size, easy to use, less maintenance
Highly chemically resistant materials ensure long service life of the sensors

Technical Parameters:

Model	DTS-RD-88-A
Application	Solid/Liquid Corrosive/Pressure liquid with steam and foam
Measuring Range	120m
Accuracy	±2mm
Frequency	80GHz
Process Temperature	-40℃~+200℃
Process Pressure	(-0.1~2.5)MPa
Process Connection	Flange from DN80
Output Signal	4…20mA/HART
Connection	Bluetooth/NB-iot/4G
Protection Class	IP67
Power Supply	Two wires DC24±6V; Four wires AC220V
Material	Stainless Steel+PTFE

Applications:

The DTS-RD-88-A Non-Contact Radar Level Transmitter is a reliable and accurate instrument produced by DTS, a leading producer of industrial instrumentation. This non-contact radar level sensor is designed for use in a wide variety of applications, from industrial process control to oil and gas production and chemical plant etc.

Packing and Shipping:

The Non Contact Radar Level Transmitter is packaged in a sturdy cardboard box with the following dimensions:
Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.

The package is shipped by air freight, usually with a carrier such as DHL or FedEx.
